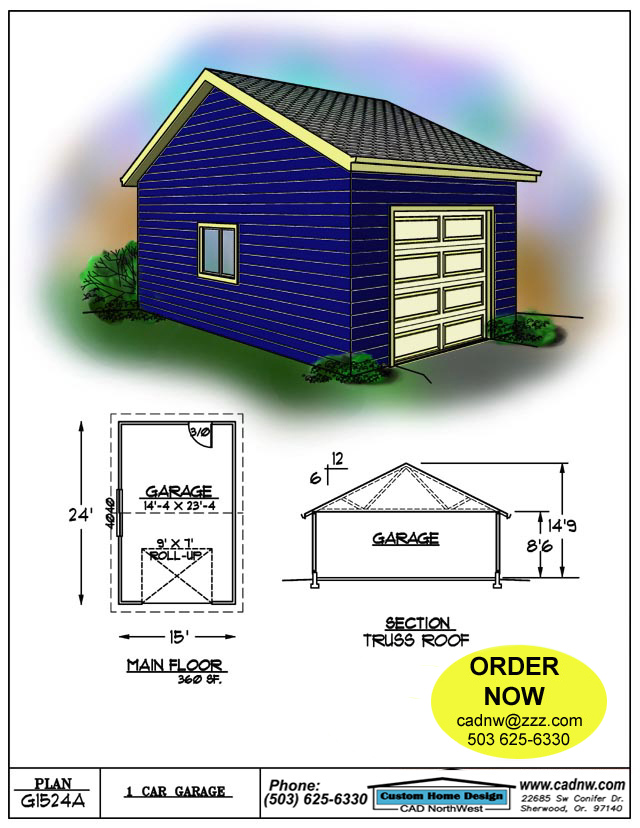

This roomy, single-car garage is an easily built truss roof building for storing your
stuff. This can be a free standing building or attached to an existing house or
garage. The rear door allows access without having to open the large 9' x 7'
overhead door. The side window allows ambient light to fill the main floor.
stuff. This can be a free standing building or attached to an existing house or
garage. The rear door allows access without having to open the large 9' x 7'
overhead door. The side window allows ambient light to fill the main floor.
Walls - 2X4 studs @ 16" O.C. with Horizontal lap siding (wood or vinyl)
Roof - 6/12 pitch framed or truss roof with Composition roofing (asphalt)
Design Snow Load - - 25#/S.F. live roof load
Ceiling Height - - 8'-6"
Size - 15'-0" wide X 24'-0" long
Footing Size - 12" wide X 6" tall
We make modifications to all garage plans.
To order this plan by phone, call (503) 245-8974 8:00 AM to 6:00 PM Pacific time.
To order this plan on-line, Click Here >> ORDER NOW
