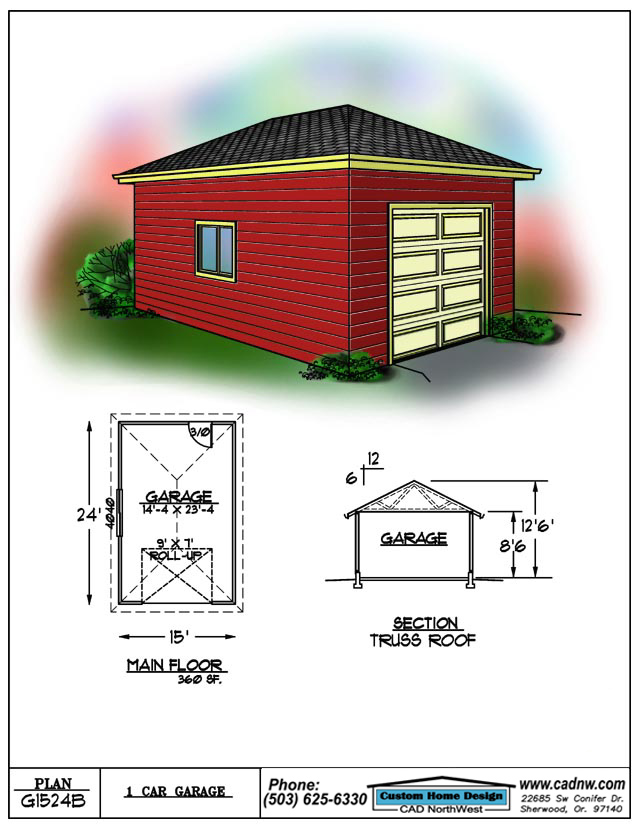

This roomy, single-car garage is an easily built truss roof building for storing your
stuff. The hip roof will blend with other existing buildings with similar roofs.
The door in the rear allows access without having to open the large 9' x 7'
overhead door. The side window allows ambient light to fill the main floor.
stuff. The hip roof will blend with other existing buildings with similar roofs.
The door in the rear allows access without having to open the large 9' x 7'
overhead door. The side window allows ambient light to fill the main floor.
Walls - 2X4 studs @ 16" O.C. with Horizontal lap siding (wood or vinyl)
Roof - 6/12 pitch framed or truss roof with Composition roofing (asphalt)
Design Snow Load - - 25#/S.F. live roof load
Ceiling Height - - 8'-6"
Size - 15'-0" wide X 24'-0" long
Footing Size - 12" wide X 6" tall
We make modifications to all garage plans.
To order this plan by phone, call (503) 245-8974 8:00 AM to 6:00 PM Pacific time.
To order this plan on-line, Click Here >> ORDER NOW
