Plan G1627A

These plans include:

We have a money back guarantee.
We make modifications to all garage plans.

Walls - 2X4 studs @ 16 O.C. with Horizontal lap siding (wood or vinyl)
Roof - 8/12 pitch, truss and framed roof with Composition roofing (asphalt)
Design Snow Load - 30#/S.F. live roof load
Ceiling Height -
Size - 16' wide X 27' long
Footing Size - 12" wide X 6" tall
Overall Height - 15'
Single/Double Door Option - No
Single and Double Door Option

This specifies whether or not this plan comes with a large single door or two smaller doors. This is an included feature with many of the plans. A 'Yes' indicates this plan has this option. A 'No' indicates this plan does not.

What is included in the price?

Materials are purchased locally at additional costs. Download the free materials list below for costing materials.

Money Back Guarantee

We have a money back Guarantee.
When you order one of our Pre-designed plans, we guarantee that you will be able to use these documents to build your project or we will issue a full refund of the price of the plans. Study or use these plans for 3 full months and if they are not useful to you, return the complete unused package and your refund will be processed the very next day.

What you will receive when you order a plan

We send our Plan Package which includes the master drawing or drawings which are printed on 24" x 36" quality bond paper, a materials list (with most of the wood, concrete, and steel), beam calculations (not available in California), an invoice, an instruction sheet for use of the drawings and and a letter, all packaged in a 3" x 3" x 24" cardboard box. The drawing has all the views required which includes all elevations, detailed floor plans at 1/4" = 1 scale, roof plan and foundation plans at 1/4" = 1, cross sections, electrical and miscellaneous details, and notes and specifications.

We can make any modifications to our plans

The cost for modifications depends on the quantity and complexity of the modifications. Many modified plans are priced between $300 and $800.
Minor modifications are allowed to be made by the customer. We send a master drawing with each package to allow marked up plans. The user may move a window or add a door to a standard plan with little effort and no additional cost.

We encourage customers to make many other simple modifications to save the cost of a custom plan. Many changes may be as easy as changing one number.

Includes Emailing of plans
Have a question or
want to order by phone?


Monday thru Friday
8:00 AM to 5:00 PM Pacific Time



Begin your order by choosing these options

Select Plan Options

Click to Continue

We accept:
visa, mastercard or paypal

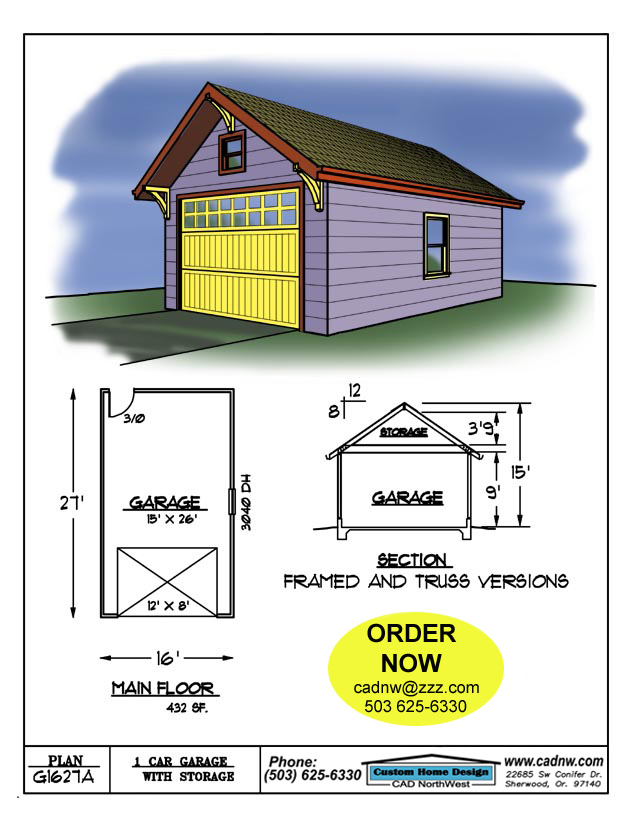

sales drawing G1627A

You may download the Material List for Plan G1627A Here:
